Dutch Army ‘Geheimtelegraaf
In 1929 the Dutch Army developed a DC Morse instrument based on the Fullerphone without
an internal field telephone. The buzzer/interrupter, a delicate and awkward to adjust
instrument, was replaced by a simple buzzer which was mechanically coupled to a microphone
acting as chopper. Unfortunately no photo or drawing of the instrument could be found
to date.

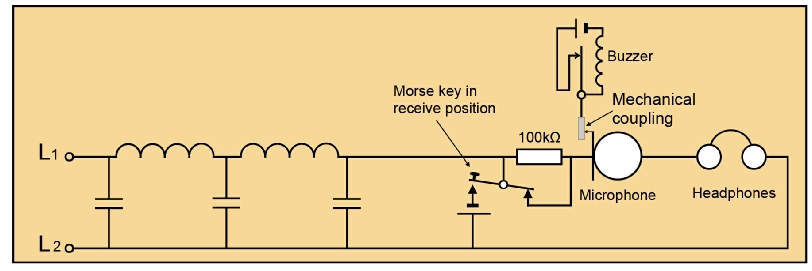

Çircuit diagram of a Fullerphone designed and produced in Holland.
Simplified circuit diagram of a Fullerphone designed and produced by the Dutch Army.
This design variation was simple and foolproof, but probably not as sensitive as
the mechanical buzzer/chopper used in the British Fullerphones. This was most probably
not required.
